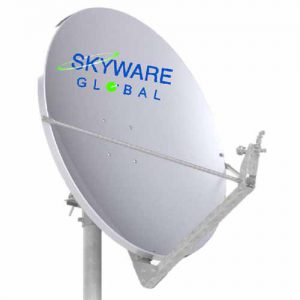

Skyware Type 121: 1.2m Standard Rx/Tx Ka-Band SFL Antenna

1.2m Ka Std Type 121

The Skyware Global 1.2m Standard Rx/Tx Ka-Band SFL Antenna is a rugged, commercial quality product suitable for the most demanding applications.

Download

The Skyware Global 1.2m Standard Rx/Tx Ka-Band SFL Antenna is a rugged, commercial quality product suitable for the most demanding applications.

  • The reflector is constructed from glass fiber reinforced polyester for strength and accuracy. A proprietary process developed by Skyware Global ensures high RF reflectivity as needed for Ka-Band operation.
  • The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error.
  • This Az/EI allows the antenna to be installed on standard 89mm [3.5”] OD installation mounts.
  • All hardware is plated to 720 hour salt spray standards under ASTM B-117.
  • Designed for use with the Skyware Global line of Ka-band feed assemblies.
  • Tx Cross-Polarization Isolation of 25dB (within 1dB b/w) or better.
  • Excellent Tx Port to Port Isolation of 90dB or better.
  • Meets or exceeds regulator agency requirements.
  • System designed for typical Ka-band RF Electronics.
