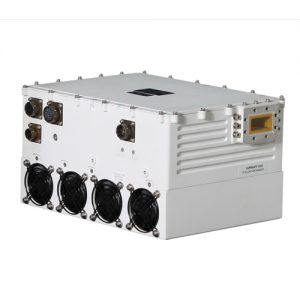

Agilis AAV700 C-Series C-Band OHT (One Housing Transceiver) is a compact RF ODU (Outdoor Unit) transceiver for satellite communication.

Download

Agilis AAV700 C-Series C-Band OHT (One Housing Transceiver) is a compact RF ODU (Outdoor Unit) transceiver for satellite communication. It is designed for voice and data application operating in different modulation formats including BPSK, QPSK, QAM and FM.

Agilis AAV700 OHT is a very compact ODU that comprises of Power Supply, Upconverter, SSPA (Solid State Power Amplifier), Down Converter and low phase noise synthesizers. It has a built-in M&C for remote and local monitoring and control. In addition, Agilis has a wide range of SSPA booster options for higher power applications.

It is suitable for SCPC (Single Channel Per Carrier) or MCPC (Multi-Channel Per Carrier), DAMA (Demand Assigned Multiple Access) and TDMA (Time Division Multiple Access) applications.

Features

  • Available for all C-Band frequencies
  • Broadband data transmission
  • Low cost, compact model
  • Easy installation & configuration
  • Built-in monitor and control
  • Higher power options available
  • Very stable OCXO reference oscillator
  • Electronically tuneable synthesizer
  • Redundancy ready
  • Surge protection
  • 70 or 140MHz IF interface
  • M&C Interface RS232/RS485/Ethernet (HTTP & SNMP)

Enhanced Monitoring and Control

Agilis AAV700 C-OHT offers M&C via RS232/485. It features full remote M&C through Windows using PC.

These include:

  • Tx/Rx level monitoring
  • Temperature monitoring
  • RF output ON/OFF
  • Frequencies selection
  • Gain control
  • Automatic fault identification & alarm

Reliability

Field proven under harsh environment conditions, Agilis ODUs can withstand temperature ranging from -40ºC to +60ºC with up to 100% humidity.

Quality Assurance

All Agilis ODUs go through intensive active electrical stress screening with performance being monitored during screening. In addition, all units undergo 100% waterproof test equivalent to IP65 to ensure normal operation during tropical, cold and harsh environment.
