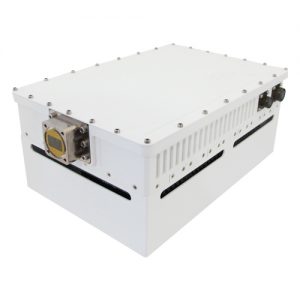

AAV900 Series Ku-Band

AAV900 Series

AAV900 Series Ku-Band SPT (Ku-Band Single Package Transceiver) is a RF ODU (Outdoor Unit) Transceiver for Satellite Communication.

Download

AAV900 Series Ku-Band SPT (Ku-Band Single Package Transceiver) is a RF ODU (Outdoor Unit) Transceiver for Satellite Communication. It Is designed for voice, data and broadband VSAT communication used in different modulation formats including BPSK, QPSK, QAM and FM.

AAV900 SPT is a highly integrated ODU that comprises of Upconverter, SSPA (Solid State Power Amplifier), Down Converter, low phase noise synthesizer, power supply and built-in M&C. With independent frequency synthesizer, it enables end-users for transmission through different uplink and downlink transponders. In addition, Agilis has a wide range of SSPA booster options for higher power applications.

AAV900 SPT is suitable for SCPC (Single Channel Per Carrier), MCPC (Multi-Channel Per Carrier), DAMA (Demand Assigned Multiple Access) and TDMA (Time Division Multiple Access) applications.

Features

  • Available for all Ku-Band frequencies
  • Broadband data transmission
  • Easy installation & configuration
  • Built-in monitor and control
  • Built-in image rejection filter
  • Very stable OCXO reference oscillator
  • Output power monitoring
  • Electronically tuneable synthesizer for Transmit and Receive
  • 1kHz frequency step size
  • Redundancy ready (Built-in)
  • Surge protection
  • 70 or 140MHz IF interface

Enhanced Monitoring and Control

AAV900 Ku-SPT offers M&C via RS232/485. It features full remote M&C through Windows using PC.

These include:

  • Tx/Rx level monitoring
  • Temperature monitoring
  • RF output ON/OFF
  • Frequencies selection
  • Gain control
  • Automatic fault identification & alarm

Reliability

Field proven under harsh environment conditions, Agilis ODUs can withstand temperature ranging from -40ºC to +60ºC with up to 100% humidity.

Quality Assurance

All Agilis ODUs go through intensive active electrical stress screening with performance being monitored during screening. In addition, all units undergo 100% waterproof test equivalent to IP65 to ensure normal operation during tropical, cold and harsh environment.
