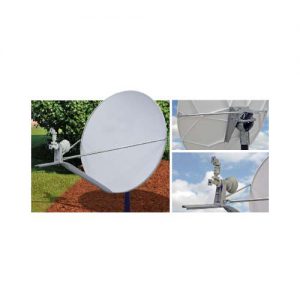

Skyware Type 123 Class II / 1.2m KU-Band Offset Antenna

1.2m Ku Class II Type 123

The Skyware Global Type 123 1.2 m Class II RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications.

Download

Type 123 Class II / 1.2m KU-Band Offset Antenna

The Skyware Global Type 123 1.2 m Class II RxTx Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which strengthens the antenna and helps to sustain the necessary parabolic shape. The reflector optics feature a long focal length for excellent cross-pol performance.

The heavy gauge steel Az/El mount secures the antenna to any 73-76 mm (2.88”-3.00”) mast and prevents slippage in high winds. A special powder paint process offers excellent protection from weather-related corrosion.

  • All materials comply with EU directive No. 2002/95/EC (RoHS).
  • Long focal length optics for low cross-pol performance.
  • Fine azimuth and elevation adjustments.
  • Available with Ku-band co–pol or cross–pol feeds.
  • Galvanized 19 mm (.75”) O.D. side feed support legs and 51 mm (2”) O.D. lower feed support.
  • Plated hardware for maximum corrosion resistance.
  • Class II system designed for typical 2 W and 4 W Ku-band Block Up-Converters (BUCs).*

*3.6 kg or 8 lb max. weight for RF electronics (BUC and LNB)
