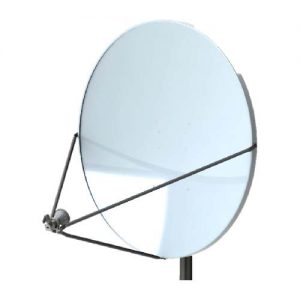

Skyware Type 125: 1.2m Rx/Tx Class I Antenna

1.2m Ku Class I Type 125

The Skyware Global 1.2m Rx/Tx Class I Antenna is a rugged, commercial quality product suitable for the most demanding applications.

Download

The Skyware Global 1.2m Rx/Tx Class I Antenna is a rugged, commercial quality product suitable for the most demanding applications.

  • The reflector is constructed from glass fiber reinforced polyester [SMC] for strength and accuracy. A proprietary process developed by Skyware Global ensures high RF reflectivity as needed for Ku-Band operation.
  • The precision Az/EI mount is made of galvanized steel for excellent corrosion resistance. This mount includes special features to increase pointing accuracy with low backlash and lockdown error.
  • This Az/EI allows the antenna to be installed on standard 73-76mm [27/8”- 3”] OD installation mounts.
  • All hardware is plated to 720 hour salt spray standards under ASTM B-117.
  • Cross-Polarization Isolation of 30dB on axis.
  • Excellent Tx Port-to-Port Isolation of 90dB or better.
  • Meets or exceeds regulator agency requirements.
  • Class I system designed for typical lightweight Ku-band RF Electronics.*

* 2.0 kg or 4.5 lb max. weight (For BUC and LNB) 2.2 kg or 4.8 lb max. weight (For Transceiver)
